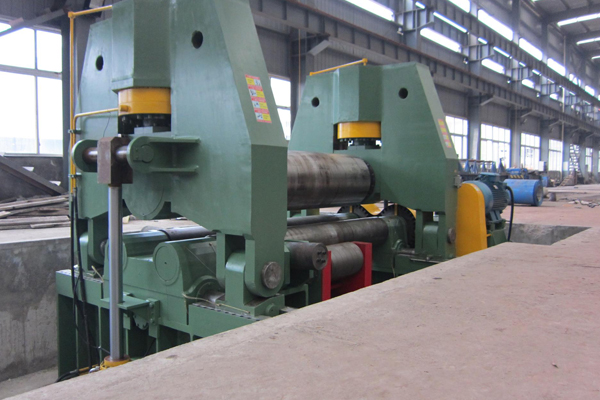

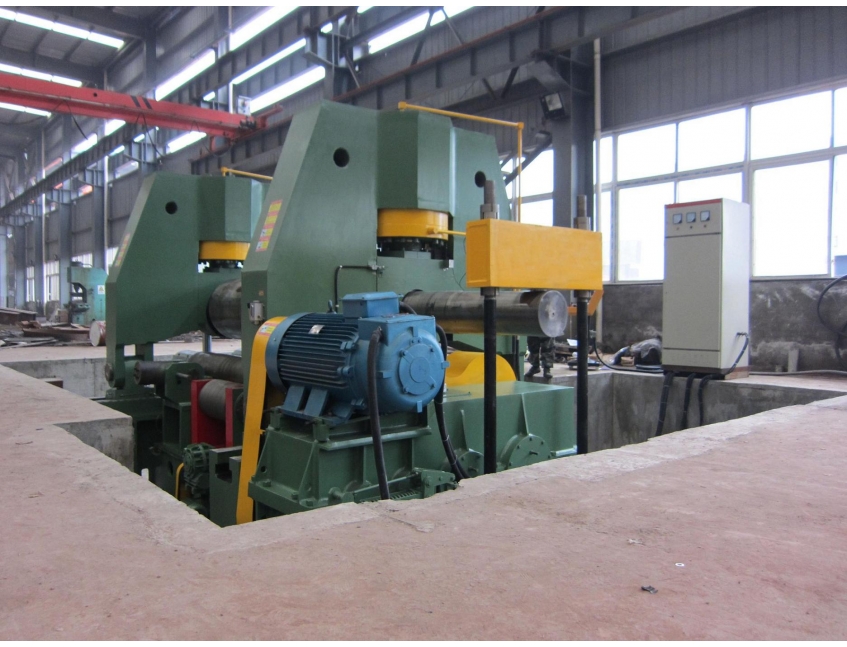

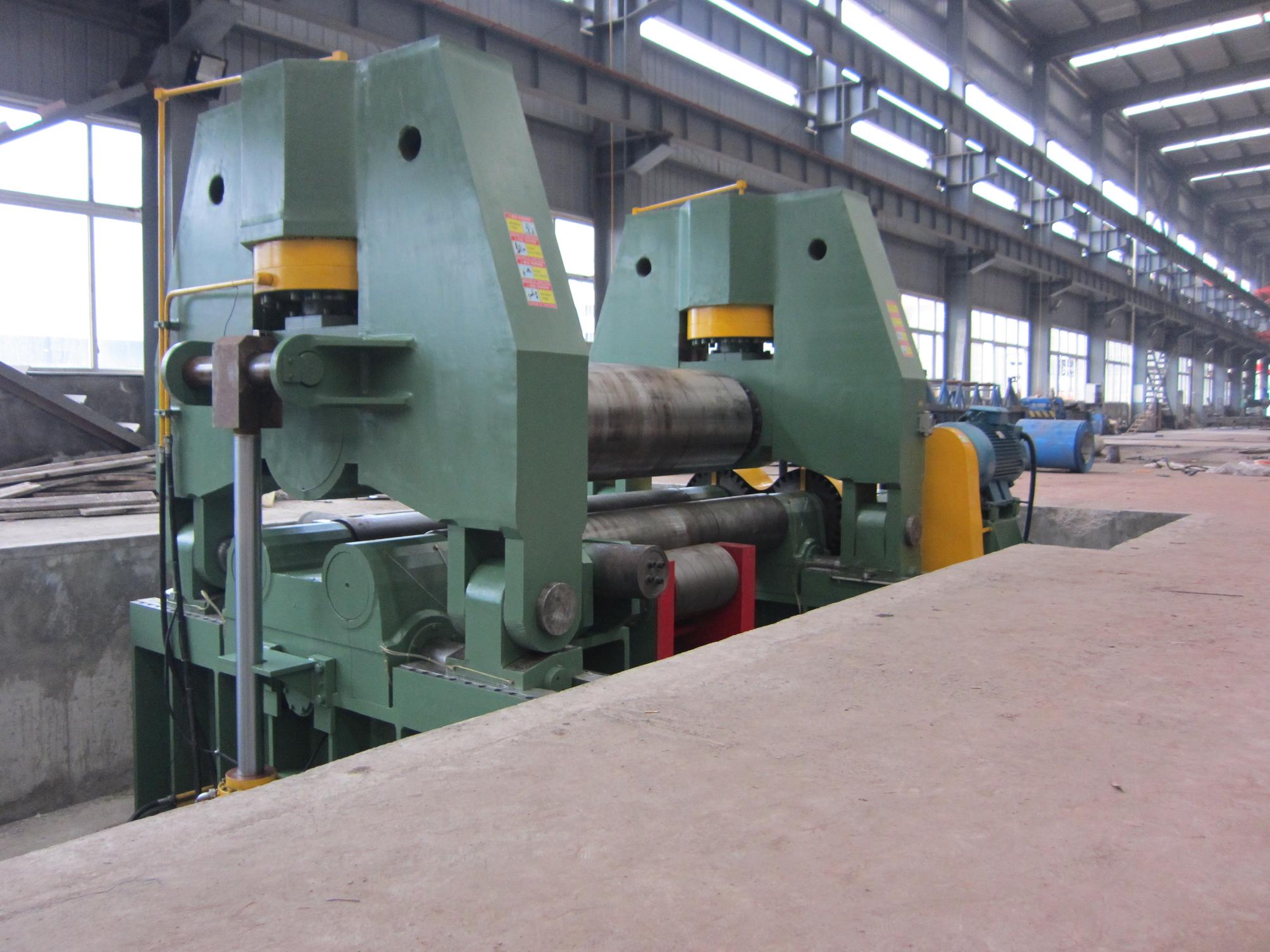

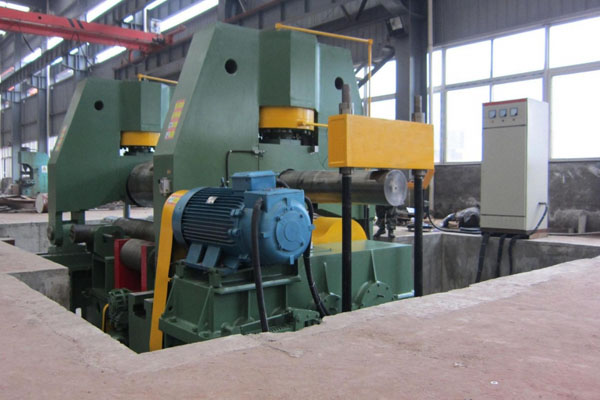

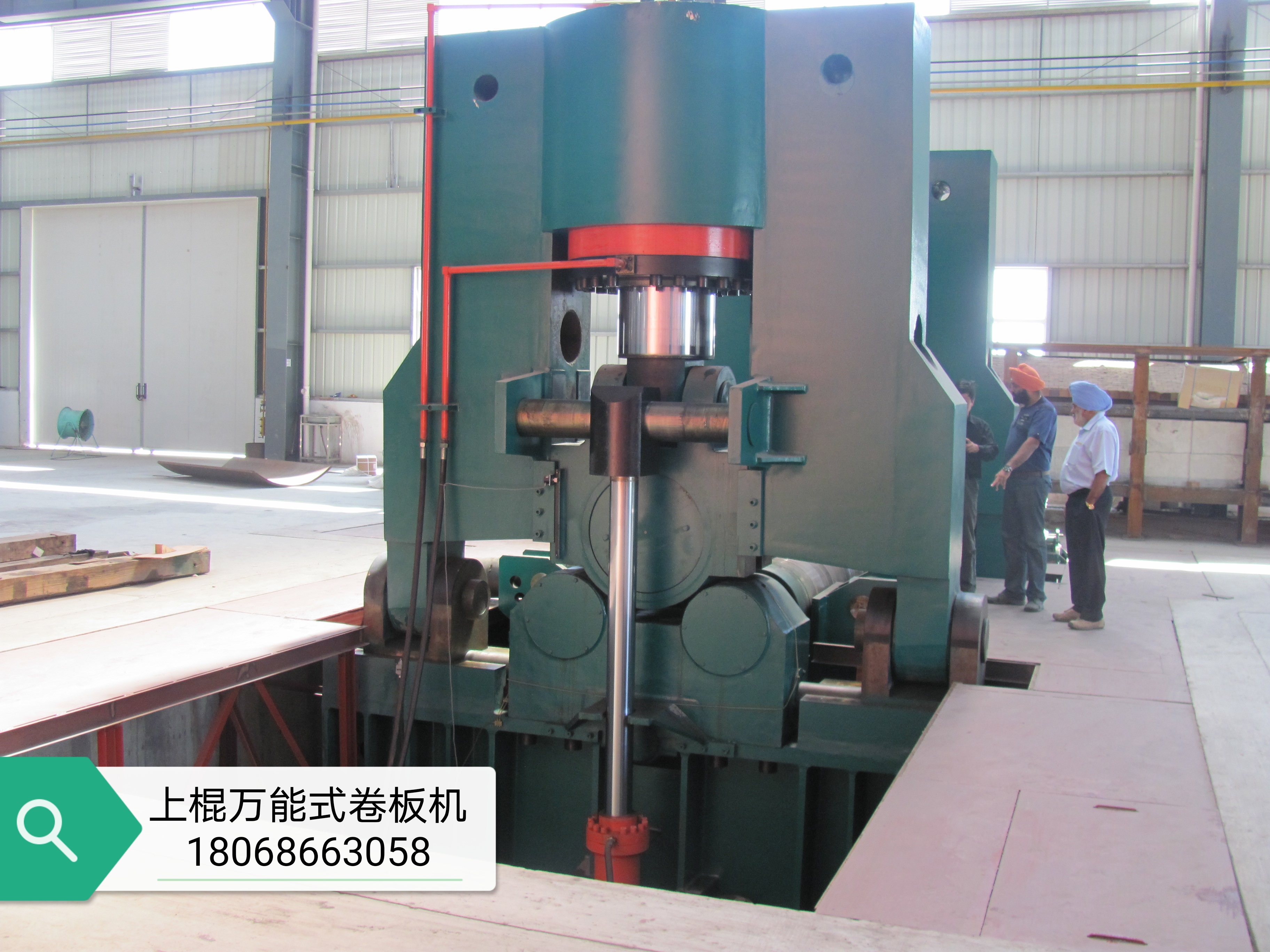

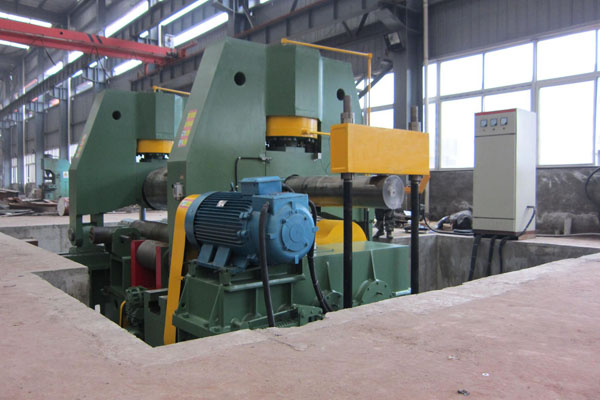

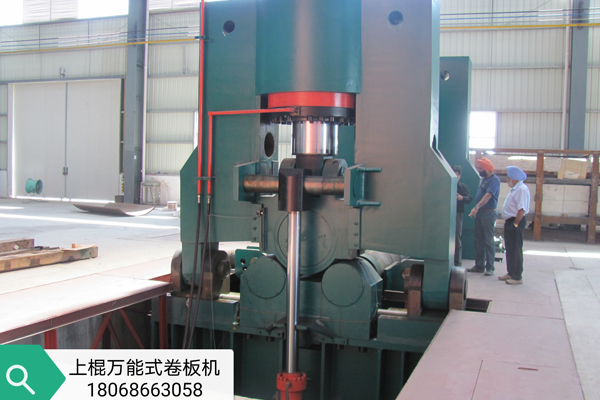

T3SNC-12T3000W Plate Bending Machine T3SNC-12T3000W Plate Bending Machine is a kind of double pinch plate bending machine. The top roller is hydraulic driving. The top roller is vertically and horizontally adjustable, and the two lower rollers are fixed. All of the rollers in alloyed steel are induction hardening and heat treatment. All of the rollers will be grinded and polished after induction hardening treatment.Features▲electronic parallelism control system▲rollers synchronization and balancing control fully electronically controlled▲top roller hydraulic driving, can be vertically and horizontally adjustable.▲anti-friction material in sliding area▲instantaneous brake for rollers rotation for high safety▲reversal side hydraulic driving▲Mobile control panel station, with low voltage control▲Mobile control push-buttons, convenience for operatorParametersW11SNC-120x3000Rated Pressing Force from Upper RollerTon1600Working temperature At natural temperaturePlate yield limitMPa245Max.Thk. of bending plate(mm)120Thk. of pre-bending100Width of bending plate3200Min. rolling dia. with max.size(mm)350Diameter of RollerUppermm920Bottommm560WorkingRollersMaterial42CrMoHardness(HB)260-300Induction Hardened RollYESRoll ProfilecrownLifting ModehydraulicCentral distance of bottom rollersmm1080Diameter of supporting rollermm520Adjusting way of supporting rollers motorizedRolling speedm/min3.5Upper roller descending speedmm/min120Upper roller ascending speedmm/min200Upper roller horizontal moving speedmm/min100Upper roller supporting way Self aligning roller bearingBottom roller driving way motor + reducer + breakerUpper roller horizontal moving way motor+ warm gearUpper roller horizontal moving speedingmm/min100Upper roller Synchronous Precise/Accuracy±(mm)≤0.20Upper roller moving precise/accuracy±(mm)≤0.20Upper roller re-position precise/accuracy±(mm)≤0.20Upper roller action controlPLC + transducersConical Bending DeviceYESPower character380V/50Hz/3phaseControl SystemControl wayPLC control + moving controllerDisplay of position & displacementLCDPLCOMRONElectrical Part SystemSIEMNENSMain Power Motor(KW)110Motor for hydraulic(KW)55Motor for horizontal moving(KW)30Hydraulic SystemMax. Working Pressure(MPa)25ValveYUKENSealVALQUEElectrical & Hydraulic Protection Againts OverloadYESConstruction Steel MaterialQ235Side Support for Big Sheet Metal DiametersoptionalCentral Support for Big sheet Metal DiametersoptionalFeeding TableoptionalOil Cooler SystemoptionalW11SNC-120x3000 3-roller Plate Bending MachineW11SNC-120x3000 3-roller Plate Bending MachineW11SNC-120x3000 3-roller Plate Bending MachineW11SNC-120x3000 3-roller Plate Bending Machine Last:T4-6T3000W Plate Bending Machine Next:About Us Keywords:3-roller Plate Bending Machine double pinch plate bending machine More:
